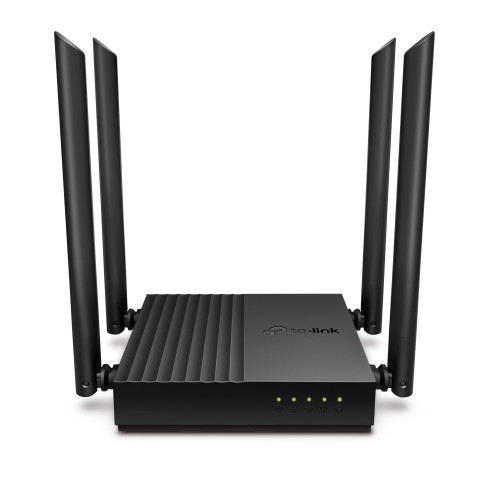

StandardsWi-Fi 5IEEE 802.11ax/n/b/g 2.4 GHzWiFi SpeedsAC12002.4 GHz: 400 Mbps (802.11ax)WiFi Range3 Bedroom Houses 4× Fixed High-Performance AntennasConcentrates wireless signal strength towards clients to expand WiFi rangeWiFi CapacityMedium Dual-BandImproves network efficiency by limiting excessive occupationWorking ModesRouter Mode
IEEE 802.11ax/ac/n/a 5 GHz | |
5 GHz: 867 Mbps (802.11ax, HE160) | |
| Multiple antennas form a signal-boosting array to cover more directions and large areasBeamforming | |
| Allocate devices to different bands for optimal performanceMU-MIMO Simultaneously communicates with multiple MU-MIMO clientsAirtime Fairness | |
| Access Point Mode |
HARDWAREProcessor1.2 GHz CPUEthernet Ports1× Gigabit WAN Port4× Gigabit LAN PortsButtonsWPS/Reset ButtonPower12V = 1A
SECURITYWiFi EncryptionWPAWPA/WPA2-Enterprise (802.1x)Network SecuritySPI FirewallApplication Layer GatewayGuest Network1× 5 GHz Guest Network1× 2.4 GHz Guest NetworkVPN Server
| WPA2 WPA3 | |
| Access Control IP & MAC Binding | |
SOFTWAREProtocolsIPv4 , IPv6Parental ControlsURL FilteringTime ControlsWAN TypesDynamic IPL2TPQuality of ServiceQoS by DeviceCloud ServiceAuto Firmware UpgradeDDNSNAT ForwardingVirtual ServersUPnPIPTVIGMP ProxyTag VLANDDNSTP-LinkDynDNSDHCPAddress ReservationServerDDNSTP-LinkManagementTether App
| Static IP PPPoE PPTP | |
| OTA Firmware Upgrade TP-Link ID | |
| Port Forwarding Port Triggering DMZ | |
| IGMP Snooping Bridge | |
| NO-IP | |
| DHCP Client List | |
| Webpage | |
PHYSICALDimensions (W×D×H)4.7 × 4.7 × 1.1 in(120 × 120 × 27.9 mm)Package ContentsWi-Fi Router Archer AX20
| Power Adapter RJ45 Ethernet Cable Quick Installation Guide | |
OTHERSSystem RequirementsCertificationsCE, RoHSEnvironmentOperating Temperature: 0℃~40℃ (32℉ ~104℉)
| Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser Cable or DSL Modem (if needed) Subscription with an internet service provider (for internet access) | |
| Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing | |
TEST DATAWiFi Transmission PowerCE EIRP:<30dBm(2.4GHz & 5GHz)WiFi Reception Sensitivity5 GHz:
| <20dBm(2.4GHz) <23dBm(5GHz) FCC: | |
| 11a 6Mbps:-95dBm 11a 54Mbps:-77dBm 11ac VHT20 MCS8:-71dBm 11ac VHT40 MCS9:-67dBm 11ac VHT80 MCS9:-63dBm2.4 GHz: 11g 6Mbps: -96dBm 11g 54Mbps: -78dBm 11n HT20 MCS7:-77dBm 11n HT40 MCS7:-74dBm 11ac VHT20 MCS8:-73dBm 11ac VHT40 MCS9:-68dBm | |
