5 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) 2.4 GHz Wi-Fi Streams: 2T2R (2×2 MIMO) Wi-Fi Antennas: 4× FixedInterfacesGigabit RJ45 Ports: 4 Ethernet Notes: 1× WAN port, the rest are LAN ports LED: System Physical Buttons: WPS Button, Reset Button Power Input: DC JackPowerPower Methods: DC DC: 12V 1A Power Adapter: Input: 100 ~ 240 V, 50/60 Hz AC.Output: 12V 1A DC Max Power Consumption (W): 10WReliabilityEnvironment: Operating Temperature: 0 ℃ ~ 40 ℃ (32 ℉ ~104 ℉) Storage Temperature: -40 ℃ ~ 70 ℃ (-40 ℉ ~ 158 ℉) Humidity: 10% ~ 90% non-condensing Storage Humidity: 5% ~ 95% non-condensingMechanicalInstallation: Desktop Wall-mount Dimension: 183.3×109×35 mm 7.22×4.29×1.38 inches Product Weight: EU: 220 g (7.76 oz.)
| Brand | Cudy |
| Model | WR1500 1.0 |

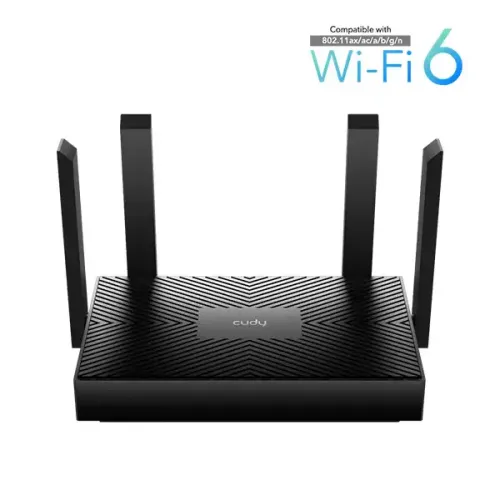

| Type | AX1500 Wi-Fi 6 Router |
| CPU | Chipset: RTL8197H CPU Details: 1 GHz CPU |
| Memory/Storage | Flash/ROM: 16 MB (128 Mbit) NOR DDR/RAM: 128 MB (1 Gbit) DDR2 |
| Wireless | 5 GHz Wi-Fi Speed: 1201 Mbps 2.4 GHz Wi-Fi Speed: 300 Mbps. |
| ZH: 224.6 g (7.92 oz.) | |
| Wireless | Wi-Fi Standards: Wi-Fi 6 Max Wi-Fi Modulation: 1024-QAM Wi-Fi Efficiency: OFDMA MU-MIMO BSS Color Max Capacity: 128 Recommended Client Upper Limit: 60 Max Wi-Fi Channel Width: 80 MHz Wi-Fi Security: WPA/WPA2/WPA3 WPS: True |
| General | Operation Modes: Wi-Fi Router Access Point Range Extender WISP Client Mesh: Cudy Mesh Mesh Backhaul: Wireless Backhaul Wired Backhaul WAN Mode: DHCP Static IP PPPOE PPTP L2TP |
| Network | QoS: Per-User Rate Limiting DHCP: Server IP Versions: IPv4/IPv6 IPv6 Protocols: Relay Dynamic (SLAAC/DHCPv6) Static (Fixed IP) Passthrough 464XLAT MAP-E DS-Lite IPTV/VLAN: Tag VLAN IPTV VLAN VoIP VLAN Bridge IGMP: IGMP Proxy Forwarding: Port Forwarding UPnP DMZ Firewall: SPI Firewall Block PING |
| Utilities | VPN Client: PPTP L2TP Wireguard DNS Options: Manual DNS Online Detection: True |
| Management | All Devices Management: MAC Filter IP/MAC Binding Content Management: Domain Filter IP Filter Port Filter |
| System | Local Control Method: Config Web Page Remote Control Method: TR069/TR098/TR111/TR181 Config Page via HTTP Firmware Upgrade: Local Update Reliability: Backup and Restore Languages: English Portuguese Russian Spanish Ukrainian French Simplified Chinese |
| Included in the Box | WR1500 Power Adapter Ethernet Cable Installation Guide |
| Certification | FCC, CE |
| Warranty Details | 1-Year Brand Warranty |
